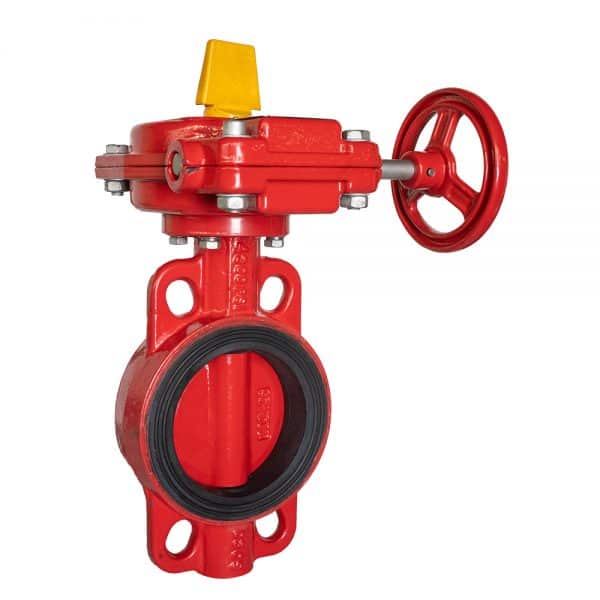

WEFLO Butterfly Valve F0811
Size Range: 2 – 12” (UL Listed);
2 – 6” (FM Approved)
Temperature Range: Up to 82°C
Pressure Ratings: Up to 300 psi
- Description
- Resources
Description
| Details | |
|---|---|
| Specifications | |
| Size Range | 2 – 12” (UL Listed) |
| 2 – 6” (FM Approved) | |
| Temperature Range | Up to 82°C |
| Pressure Ratings | Up to 300 psi |
| End Connection | Wafer End to suit ANSI, PN10, 16 |
| Standards | |
|---|---|
| Flange Dimension | ASME B16.5 Class 150 |
| EN 1092 PN10/16 | |
| Materials | |
|---|---|
| Body | Ductile Iron EN1563 EN-GJS-450-10 |
| Seat | EPDM |
| Disc | Ductile Iron EN1563 EN-GJS-450-10 |
| Shaft | Stainless Steel EN1088 X17CrNi 16-2 |
