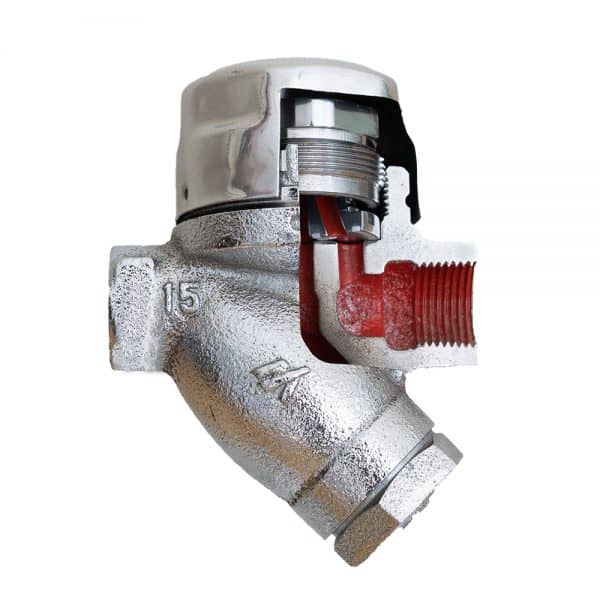

MIYAWAKI Thermodynamic Disc Trap (Automatic Blow-off)
Model: S31N, SU2N, SD1, SC, SF, S55N, S61N, S62N
Size Range: DN 8 – 25 (1/4 – 2″)
Body Material: Cast Iron, Ductile Iron, Forged Steel, Stainless Steel
Pressure Rating: Up to 64 Bar
Temperature Range: Up to 425°C
Connection: Threaded, Socket Weld, Flanged End
- Description
- Resources

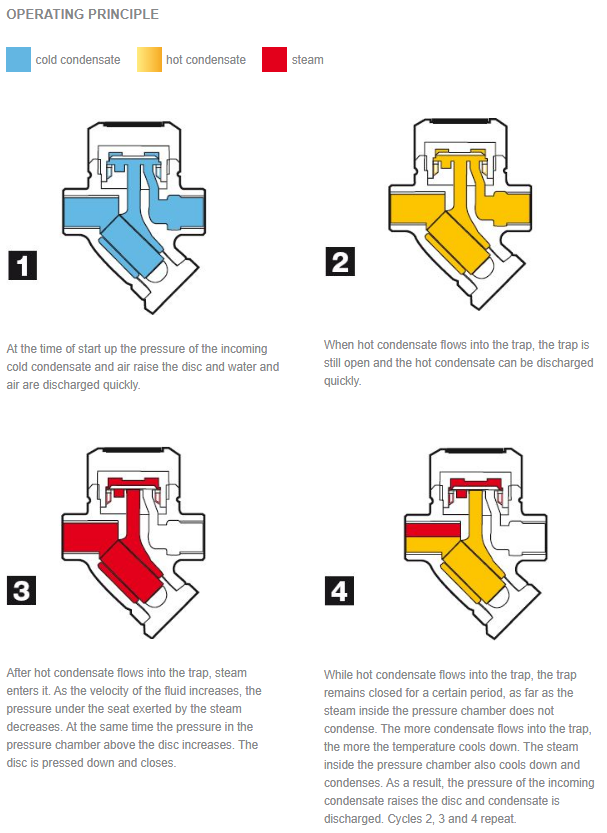

- Operations
Description
| Details | |
|---|---|
| Suitable for light to medium condensate loads: steam tracing, steam main drips, small heat exchangers, unit heaters, sterilizers and many other applications in the petrochemical, chemical, textile, food, pharmaceutical and further industries. | |

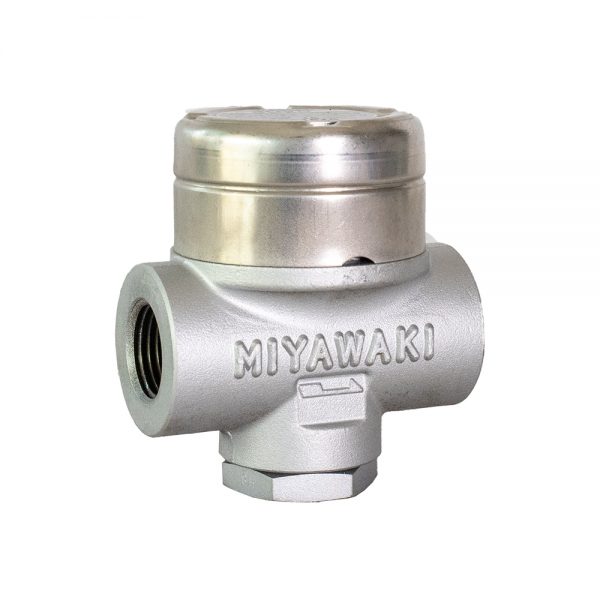

| S31N | Ductile Cast Iron Steam Traps with replaceable internals |

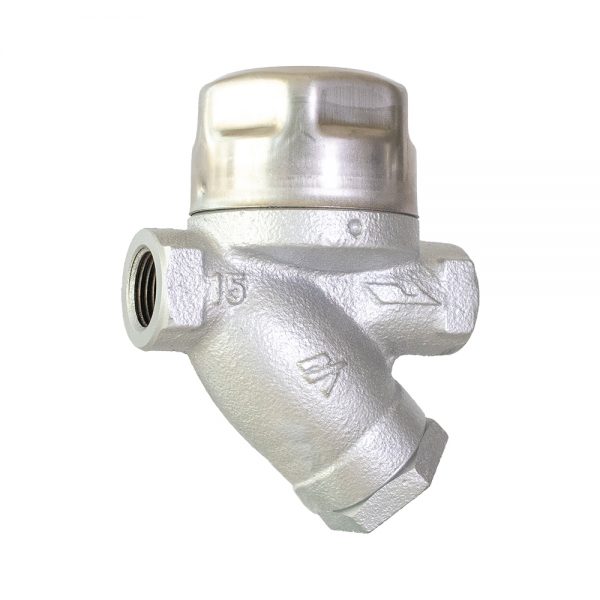

| SC,SF | Cast Iron Steam Traps for high capacity |
| SU2N, SU2H | Stainless Steel Steam Traps for high pressure applications |
| SD1 | Stainless Steel Steam Traps for high pressure applications |
| S55N, S61N, S62N | Forged Steel Steam Traps for high pressure applications |
| Features | |
|---|---|
| Immediate discharge of condensate | |
| Insensitive to water hammer, superheated steam and freezing | |
| Use of a bimetal ring to improve the ability of the trap to discharge air and cold condensate quickly at start-up and prevents air locking during times of operation | |
| Can be installed in any position | |
| Equipped with additional cover for reduced frequency of cycling and energy savings | |
| All traps have inbuilt strainers |
