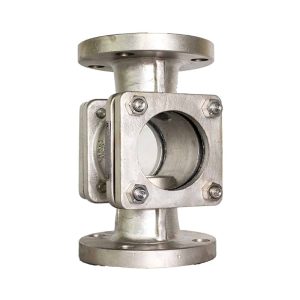

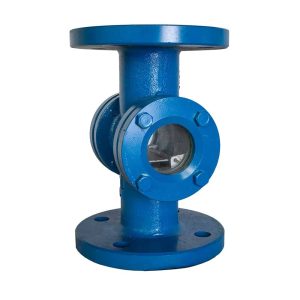

VALMATIC Double Window Sight Glass
Size Range: 15 – 200 mm (1/2 – 8”)
Temperature Range: Up to 300°C
Pressure Ratings: 7 bar max
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 15 – 200 mm (1/2 – 8”) |
| Temperature Range | Up to 220°C |
| Pressure Ratings | 7 bar max |
| End Connection | Screwed End BSPT Female Thread |
| Flanged End to ANSI 150, DIN PN16 | |
| Specifications | |
|---|---|
| 1. Screwed End | |
| Body | Carbon Steel |
| Glass | Borosilicate |
| Sealing Gasket | SS304 + Graphite |
| 2. Flanged End | |
|---|---|
| Body | Carbon Steel, SS304, SS316 |
| Glass | Borosilicate |
| Sealing Gasket | SS304 + Graphite |
