VALMATIC Screwed End Y-Strainer
Size Range: 10 to 50 mm (3/8 to 2”)
Temperature Range: Up to 150°C
Pressure Ratings: Stainless Steel: 800 psi WOG;
Cast Iron: 10 kgf/cm2;
Brass: 16 bar
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 10 to 50 mm (3/8 to 2”) |
| Pressure Ratings | Up to 150°C |
| End Connections | Stainless Steel: 800 psi WOG |
| Cast Iron: 10 kgf/cm2 | |
| Brass: 16 bar | |
| Mesh Size | 20 / 40 |
| End Connection | Screwed End BSPT Female Thread |
| Materials | |
|---|---|

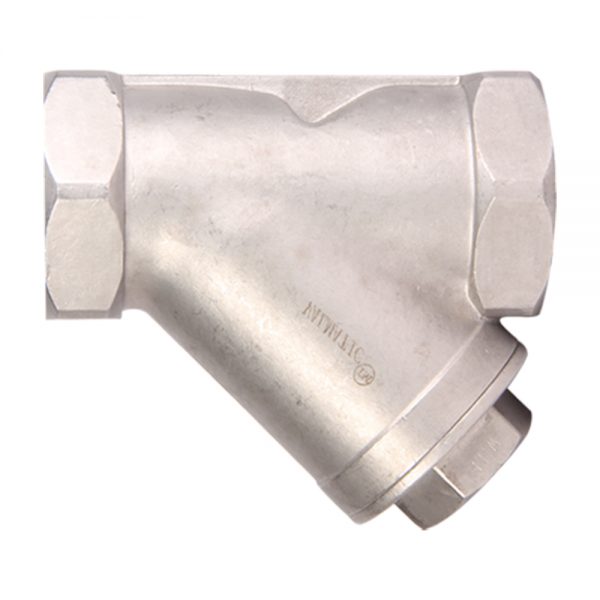

| 1. Stainless Steel 304 / 316 | |
| Body | Stainless Steel 304 / 316 |
| Screen | Stainless Steel 304 / 316 |
| Gasket | PTFE |

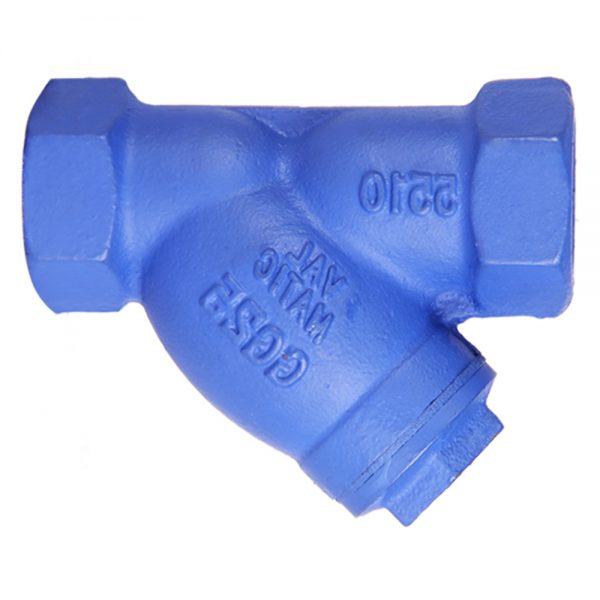

| 2. Cast Iron | |
| Body | Cast Iron |
| Screen | Stainless Steel 304 |
| Gasket | Graphite |

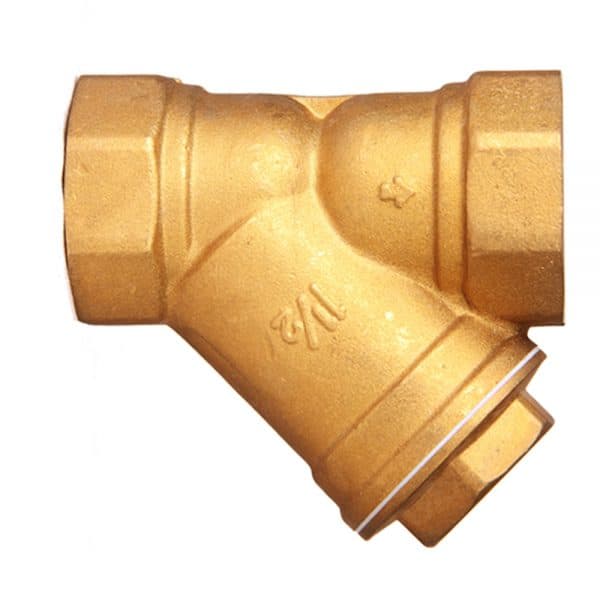

| 3. Brass | |
| Body | Brass |
| Screen | Stainless Steel 304 |
| Gasket | PTFE |
