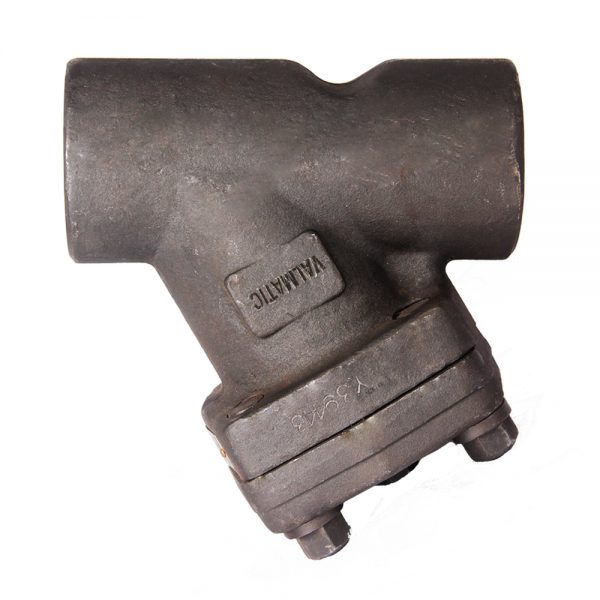

VALMATIC Forged Steel Y-Strainer
Size Range: 15 – 50 mm (1/2 to 2″)
Temperature Range: -20°C to 425°C
Pressure Ratings: Class 800, 1500
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 15 – 50 mm (1/2 to 2″) |
| Temperature Range | -20°C to 425°C |
| Pressure Ratings | Class 800, 1500 |
| End Connection | Threaded, Socket Weld, Flanged |
| Standards | |
|---|---|
| Design Standard | API 602 |
| Face to Face Dimension | ASME B16.10 |
| Test and Inspection | API 598 |
| Pressure – Temperature Rating | ASME B16.34 |
| Materials | |
|---|---|
| 1. Forged Carbon Steel | |
| Body | ASTM A105N |
| Screen | ASTM A351 CF8 (SS304) |
| Gasket | ASTM A351 CF8 + Graphite |
