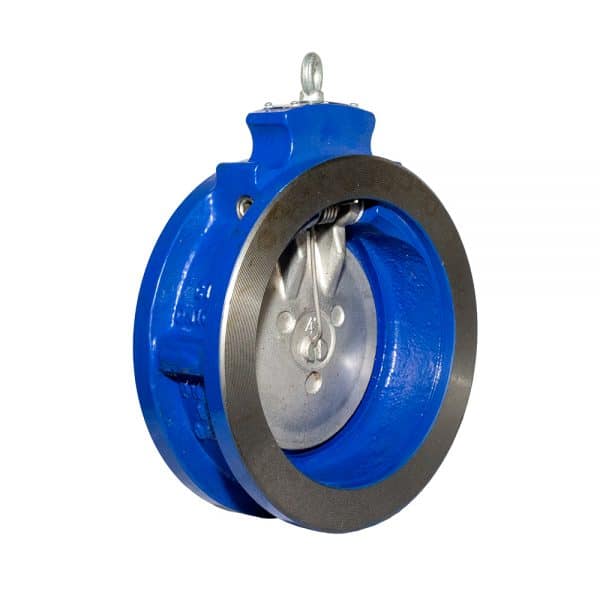

VALMATIC Wafer Swing Check Valve
Size Range: 50 – 600 mm (2 – 24″)
Temperature Range: Up to 150°C
Pressure Ratings: Cast Iron, Class 125; Carbon Steel and Stainless Steel, Class 150
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 50 – 600 mm (2 – 24″) |
| Temperature Range | Up to 150°C |
| Carbon Steel and Stainless Steel, Class 150 | |
| End Connections | Wafer to suit ANSI 150, PN16 |
| Standards | |
|---|---|
| Flange Dimension | ASME B16.5 |
| EN 1092-2 | |
| Materials | |
|---|---|
| 1. Cast Iron | |
| Body | Cast Iron |
| Seat | Viton |
| Clapper | ASTM A351 CF8 (SS304) |
| Spring | ASTM A351 CF8 (SS304) |
| 2. Carbon Steel | |
| Body | ASTM A216 WCB |
| Seat | Viton |
| Clapper | ASTM A351 CF8 (SS304) |
| Spring | ASTM A351 CF8 (SS304) |
| 3. Stainless Steel 304 | |
| Body | ASTM A351 CF8 (SS304) |
| Seat | Viton |
| Clapper | ASTM A351 CF8 (SS304) |
| Spring | ASTM A351 CF8 (SS304) |
| 4. Stainless Steel 316 | |
| Body | ASTM A351 CF8M (SS316) |
| Seat | Viton |
| Clapper | ASTM A351 CF8M (SS316) |
| Spring | ASTM A351 CF8M (SS316) |
