CLORIUS Temperature Control Valve
Control Valve
Model: L1S, L2S, M1F, M1FB, M2F, M2FR, M3F, G1F
Size Range: 15 – 300 mm (1/2 – 12″)
Valve Type: 2-way, 3-way
Design Construction: Single seated, single seated pressure balances, double seated
Connection: Threaded End, Flanged End DIN PN16, 25, 40
Thermostat
Model: V2.05, V4.03, V4.05, V4.10,V8.09, V8.18
Operating Torque: V2 – 200Nm, V4 – 400Nm, V8 – 800Nm
Capillary Length: Standard 3 meter (up to 21 meter)
Adjustment Range: 0 – 60°C, 0 – 120°C, 30 – 90°C, 40 – 160°C, 60 – 120°C & others
- Description
- Features
- Resources
Description
| Operating Conditions | |
|---|---|
| Gun Metal and Cast Iron Valves (PN16) | |
| 2-way valve | Up to 225°C |
| 3-way valve | Up to 120°C |
| Nodular Cast Iron Valves (PN25) | |
| 2-way valve | Up to 300°C |
| 3-way valve | Up to 120°C |
| Cast Steel Valves (PN40) | |
| 2-way valve | Up to 350°C |
| 3-way valve | Up to 350°C |
| Features | |
|---|---|
| CLORIUS Temperature Control Valve is designed to regulate low, medium or high pressure hot water, steam, and lubricating oils | |

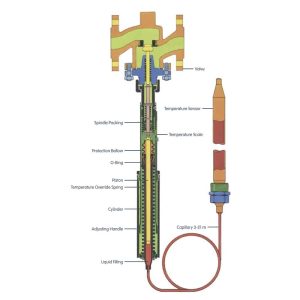

| The thermostat and control valve makes up the temperature control valve. The thermostat consists of a sensor and a capillary tube filled with liquid and an adjustable cylinder. Since the thermostat does not require an external power source to function, it is easy and inexpensive to install. | |
| – No external power required | |
| – Suitable for use in hazardous areas | |
| – Simple design secures reliable controls and reduces costly downtime | |
| Also available actuators: | |
| SAFETY THERMOSTAT TYPE SH4 | |
| Safety Thermostat is an on/off actuator which used together with a valve to protect secondary piping installation in the heat exchangers system, whereby the regulating valve will also serve as a safety valve. | |
| ELECTRIC MOTOR TYPE V, AV AND VB | |
| The valve electric motor is an alternative actuation other than the thermostat. It can be install to the control valve without any modification on the actuation mounting connection. | |
| ELECTRIC VALVE | |
| CLORIUS Type AVM Linear Electric Actuator is designed for actuation of 2 and 3-way valves. | |
| For controllers with constant output (0…10V or 4…20mA) or switching output (2-point or 3-point control). | |
| Automatic adaptation to valve, optimal operator convenience, precision control and high energy efficiency with minimal operating noise. |
