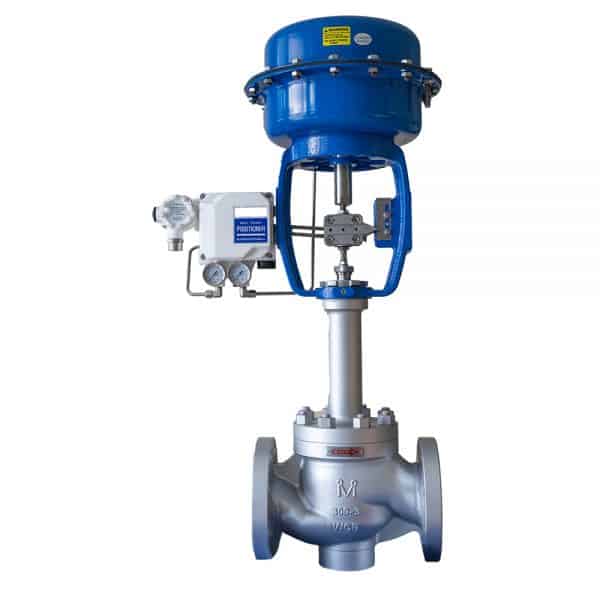

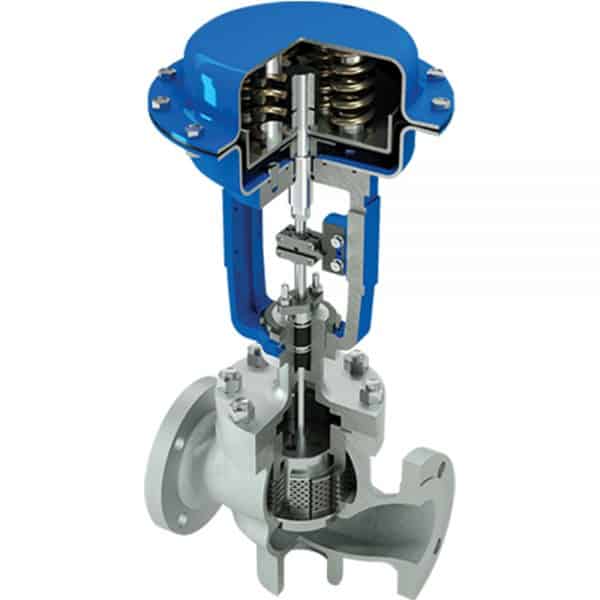

KOMOTO Globe Control Valve
Size Range: 15 to 400mm (1/2 to 16″)
Temperature Range: Plain bonnet: -17°C to 230°C;
Extension Bonnet: -45°C to -17°C, >230°C;
Cryogenic: -196°C to -45°C
Pressure Ratings: Class 150, 300, 600;
PN 10, 16, 40, 100
- Description
- Resources
Description
| Specifications | |
|---|---|
| Size Range | 15 to 400mm (1/2 to 16″) |
| Temperature Range | Plain bonnet: -17°C to 230°C |
| Extension Bonnet: -45°C to -17°C, >230°C | |
| Cryogenic: -196°C to -45°C | |
| Pressure Ratings | Class 150, 300, 600 |
| PN 10, 16, 40, 100 | |
| End Connection | Screwed, Socket Weld, Butt Weld |
| Flange End ANSI, DIN and JIS | |
| Leakage Class | Metal Seat – Rated ANSI Class IV, V |
| Soft Seat – Rated ANSI Class V,VI | |
| Flow Characteristic | Equal Percentage, Linear, Quick Opening |
| Rangeability | 10:1 to 100:1 |
| Actuator | Series 3600 Diaphragm Actuator |
| Accessories | Limit / Proximity Switch, EP Positioner |
| Standards | |
|---|---|
| Design Standard | ASME B16.34, ASME Section VIII |
| Face to Face Dimension | According to ISA S75.03 1984 |
| Materials (dependent on application) | |
|---|---|
| Body | ASTM A216 WCB |
| ASTM A351 CF8 (SS304) | |
| ASTM A351 CF8M (SS316) | |
| ASTM A351 CF3 (SS304L) | |
| ASTM A351 CF3M (SS316L) | |
| Seat | SS304, SS316, SS304L, SS316L |
| SS410, 420J2, 440C | |
