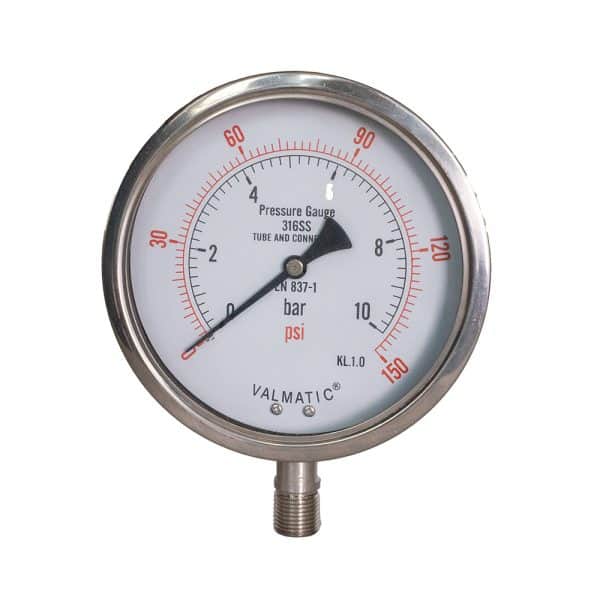

VALMATIC Stainless Steel Pressure Gauge
Dial Size: 4″ (100 mm) , 6″ (150 mm)
Accuracy: ±1.0% of Full Scale
Working Temperature: Up to 200°C
- Description
- Resources
Description
| Specifications | |
|---|---|
| Dial Size | 4″ (100 mm) , 6″ (150 mm) |
| Accuracy | ±1.0% of Full Scale |
| Working Temperature | Up to 200°C |
| End Connection | 1/2″ BSPT Thread Bottom Entry |
| Measuring Range | 0-10 bar, 0-20 bar, 0-40 bar (other range on request) |
| Scale Unit | Dual Scale in psi and bar |
| Application | |
|---|---|
| Suitable for water, steam, oil and gases | |
| Materials | |
|---|---|
| Casing & Bezel | Stainless Steel 304 |
| Bourdon Type | Stainless Steel 316 |
| Connection | Stainless Steel 304 |
